H3492-01

H3492-01

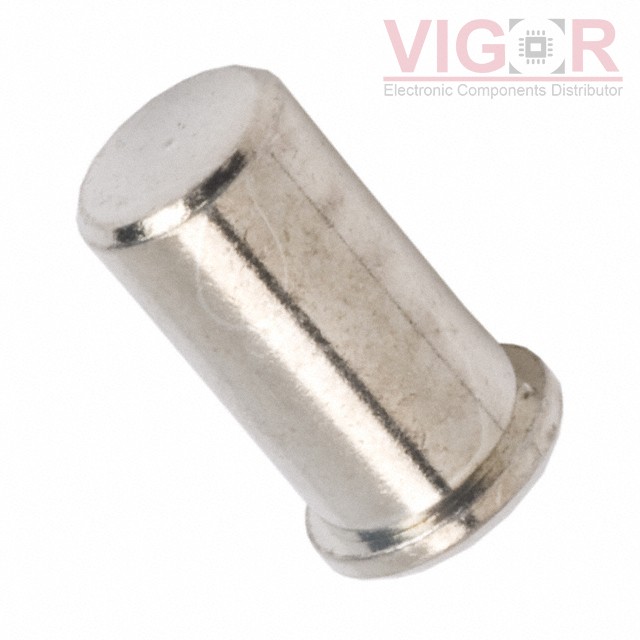

Image is for reference,
please contact us to get the real picture

Part No :

H3492-01

Manufacturer
Harwin
Description
CONN PIN RCPT .079 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
H3492-01 PDF
Availability
1131 pieces
Unit Price
$1.26000

Current price of H3492-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H3492-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Solder
Length - Overall:0.315" (8.00mm)
Accepts Pin Diameter:0.079" ~ 0.091" (2.00mm ~ 2.30mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.158" ~ 0.162" (4.01mm ~ 4.12mm)
Flange Diameter:0.187" (4.75mm)
Tail Diameter:-
Socket Depth:0.161" (4.09mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
