5059-0-15-15-34-27-04-0

5059-0-15-15-34-27-04-0

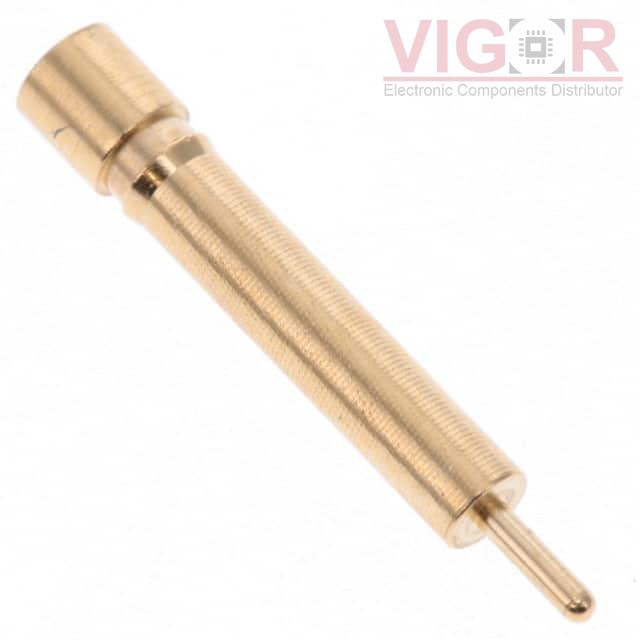

Image is for reference,
please contact us to get the real picture

Part No :

5059-0-15-15-34-27-04-0

Manufacturer
Mill-Max
Description
CONN RECEPT PIN .032-.046" .125"
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
5059-0-15-15-34-27-04-0 PDF
Availability
3232 pieces
Unit Price
$2.24000

Current price of 5059-0-15-15-34-27-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5059-0-15-15-34-27-04-0 Specifications
Type Description
Series:5059
Package:Bulk
Part Status:Active
Tail Type:Standard Tail
Termination:Press-Fit
Length - Overall:0.655" (16.64mm)
Accepts Pin Diameter:0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.064" (1.63mm)
Mounting Hole Diameter:0.090" (2.29mm)
Flange Diameter:0.102" (2.59mm)
Tail Diameter:0.030" (0.76mm)
Socket Depth:0.495" (12.57mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
