8401-0-15-01-47-01-04-0

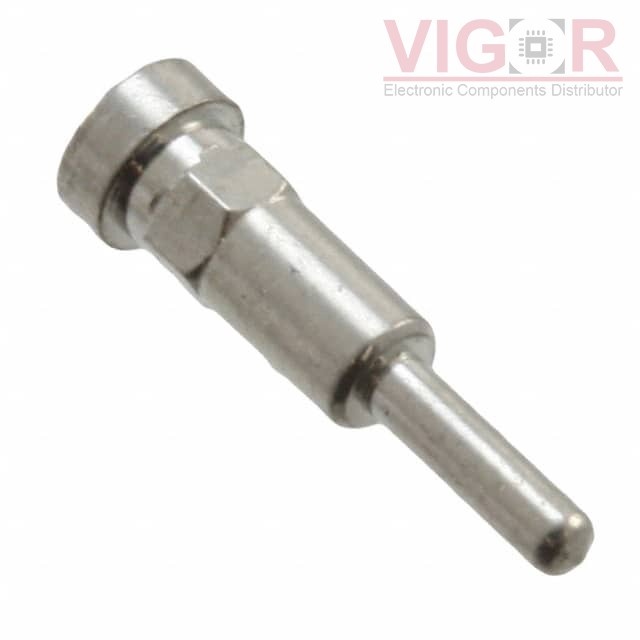

Image is for reference,
please contact us to get the real picture

Part No :: 8401-0-15-01-47-01-04-0

Manufacturer: Mill-Max

Description: CONN RECEPT PIN .025-.037" .250"

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: 8401-0-15-01-47-01-04-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.65072~~

Current price of 8401-0-15-01-47-01-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8401-0-15-01-47-01-04-0 Specifications

Type	Description
Series:	8401
Package:	Bulk
Part Status:	Active
Tail Type:	Standard Tail
Termination:	Press-Fit, Hex
Length - Overall:	0.285" (7.24mm)
Accepts Pin Diameter:	0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size:	0.025" (0.64mm)
Pin Hole Diameter:	0.051" (1.30mm)
Mounting Hole Diameter:	0.063" (1.60mm)
Flange Diameter:	0.079" (2.01mm)
Tail Diameter:	0.031" (0.79mm)
Socket Depth:	0.144" (3.66mm)
Contact Material:	Beryllium Copper
Contact Finish:	Tin-Lead
Contact Finish Thickness:	200.0µin (5.08µm)
