0305-2-15-80-47-27-10-0

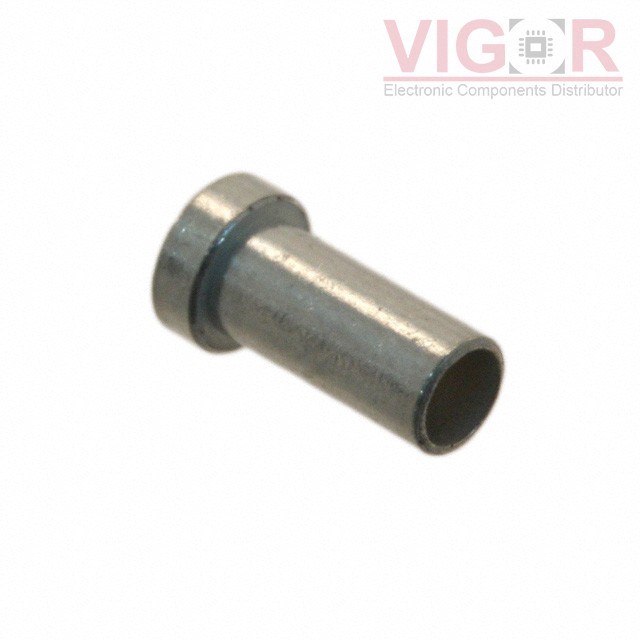

Image is for reference,
please contact us to get the real picture

Part No :: 0305-2-15-80-47-27-10-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT .025-.037 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 0305-2-15-80-47-27-10-0 PDF

Availability: 10457 pieces

Unit Price: ~~$0.31000~~

Current price of 0305-2-15-80-47-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0305-2-15-80-47-27-10-0 Specifications

Type	Description
Series:	305
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.155" (3.94mm)
Accepts Pin Diameter:	0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size:	0.025" (0.64mm)
Pin Hole Diameter:	0.051" (1.30mm)
Mounting Hole Diameter:	0.061" (1.55mm)
Flange Diameter:	0.076" (1.93mm)
Tail Diameter:	-
Socket Depth:	0.155" (3.94mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
