0253-0-15-01-30-27-10-0

0253-0-15-01-30-27-10-0

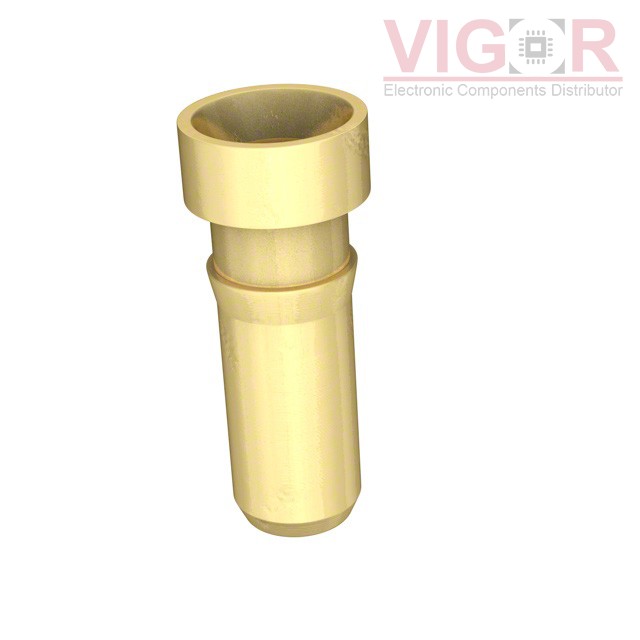

Image is for reference,
please contact us to get the real picture

Part No :

0253-0-15-01-30-27-10-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .015-.025 PRESSFIT
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
0253-0-15-01-30-27-10-0 PDF
Availability
45 pieces
Unit Price
$1.09000

Current price of 0253-0-15-01-30-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0253-0-15-01-30-27-10-0 Specifications
Type Description
Series:253
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Press-Fit
Length - Overall:0.173" (4.39mm)
Accepts Pin Diameter:0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.043" (1.09mm)
Mounting Hole Diameter:0.057" (1.45mm)
Flange Diameter:0.072" (1.83mm)
Tail Diameter:-
Socket Depth:0.148" (3.76mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
