9801-0-15-15-23-27-10-0

9801-0-15-15-23-27-10-0

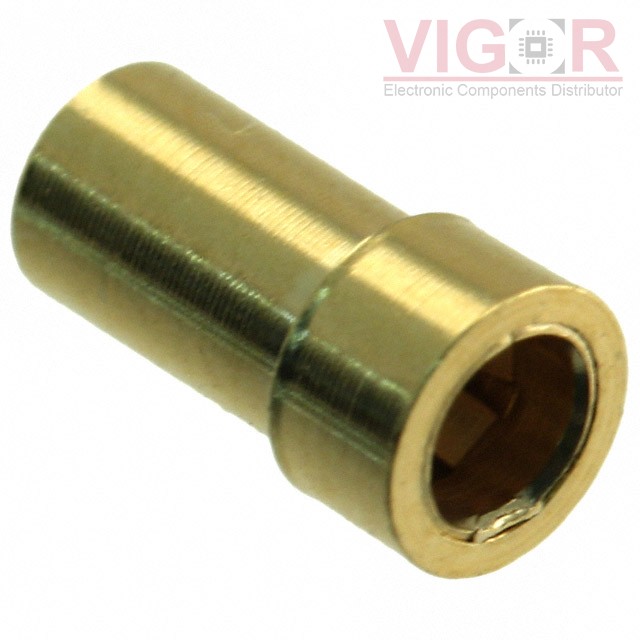

Image is for reference,
please contact us to get the real picture

Part No :

9801-0-15-15-23-27-10-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .045-.065 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
9801-0-15-15-23-27-10-0 PDF
Availability
6841 pieces
Unit Price
$0.71000

Current price of 9801-0-15-15-23-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9801-0-15-15-23-27-10-0 Specifications
Type Description
Series:9801
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Solder
Length - Overall:0.230" (5.84mm)
Accepts Pin Diameter:0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.088" (2.24mm)
Mounting Hole Diameter:0.102" (2.59mm)
Flange Diameter:0.120" (3.05mm)
Tail Diameter:-
Socket Depth:0.195" (4.95mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
