S9101-46R

S9101-46R

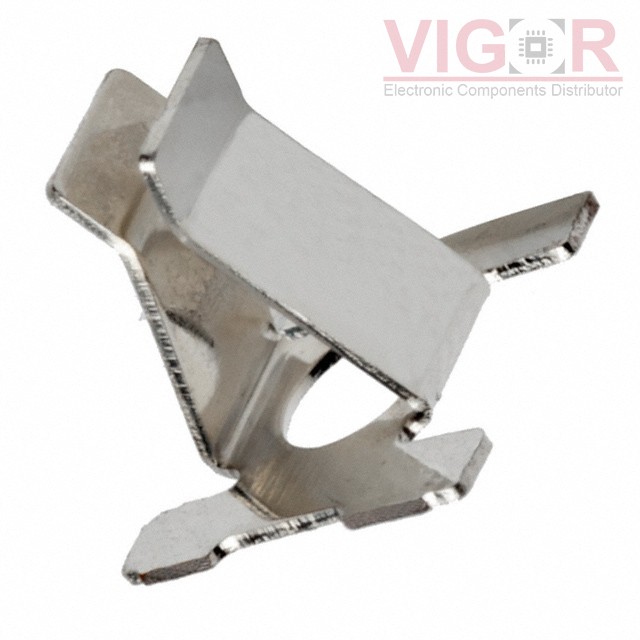

Image is for reference,
please contact us to get the real picture

Part No :

S9101-46R

Manufacturer
Harwin
Description
CONN PIN RCPT .043-.071 SMD
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
S9101-46R PDF
Availability
0 pieces
Unit Price
$0.26000

Current price of S9101-46R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S9101-46R Specifications
Type Description
Series:EZ-Board
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Tail Type:Clip
Termination:Surface Mount
Length - Overall:0.177" (4.50mm)
Accepts Pin Diameter:0.043" ~ 0.071" (1.10mm ~ 1.80mm)
Accepts Square Pin Size:0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Pin Hole Diameter:0.079" (2.00mm)
Mounting Hole Diameter:0.158" (4.01mm)
Flange Diameter:-
Tail Diameter:-
Socket Depth:0.138" (3.51mm)
Contact Material:Phosphor Bronze
Contact Finish:Tin
Contact Finish Thickness:157.5µin (4.00µm)
