1147-0-18-15-21-27-10-0

1147-0-18-15-21-27-10-0

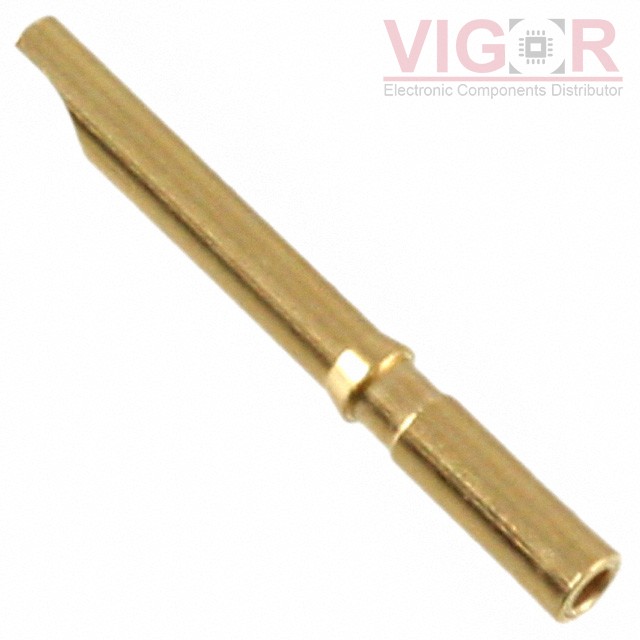

Image is for reference,
please contact us to get the real picture

Part No :

1147-0-18-15-21-27-10-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .015-.022 PRESSFIT
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
1147-0-18-15-21-27-10-0 PDF
Availability
2139 pieces
Unit Price
$0.61000

Current price of 1147-0-18-15-21-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1147-0-18-15-21-27-10-0 Specifications
Type Description
Series:1147
Package:Bulk
Part Status:Active
Tail Type:Solder Cup
Termination:Press-Fit
Length - Overall:0.380" (9.65mm)
Accepts Pin Diameter:0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.031" (0.79mm)
Mounting Hole Diameter:0.043" (1.09mm)
Flange Diameter:0.044" (1.12mm)
Tail Diameter:-
Socket Depth:0.225" (5.72mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
