0814-0-15-15-34-27-04-0

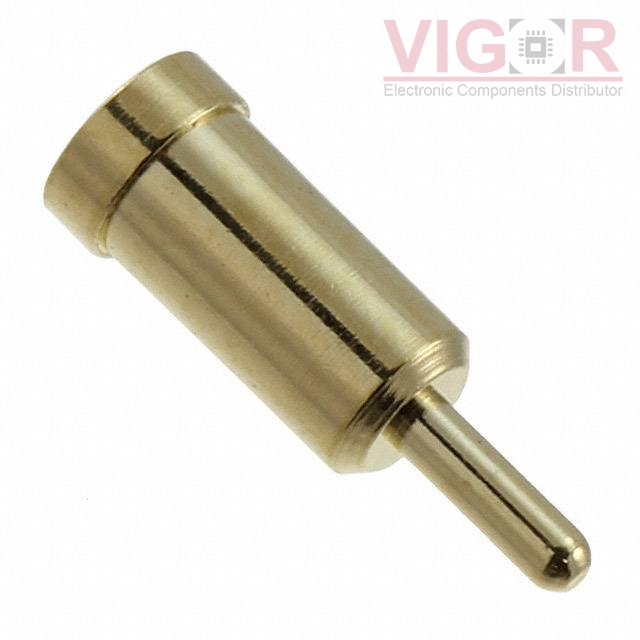

Image is for reference,
please contact us to get the real picture

Part No :: 0814-0-15-15-34-27-04-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT .032-.046 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 0814-0-15-15-34-27-04-0 PDF

Availability: 2450 pieces

Unit Price: ~~$1.01000~~

Current price of 0814-0-15-15-34-27-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0814-0-15-15-34-27-04-0 Specifications

Type	Description
Series:	814
Package:	Bulk
Part Status:	Active
Tail Type:	Standard Tail
Termination:	Solder
Length - Overall:	0.280" (7.11mm)
Accepts Pin Diameter:	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.064" (1.63mm)
Mounting Hole Diameter:	0.082" (2.08mm)
Flange Diameter:	0.090" (2.29mm)
Tail Diameter:	0.030" (0.76mm)
Socket Depth:	0.150" (3.81mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
