0314-0-15-80-34-80-10-0

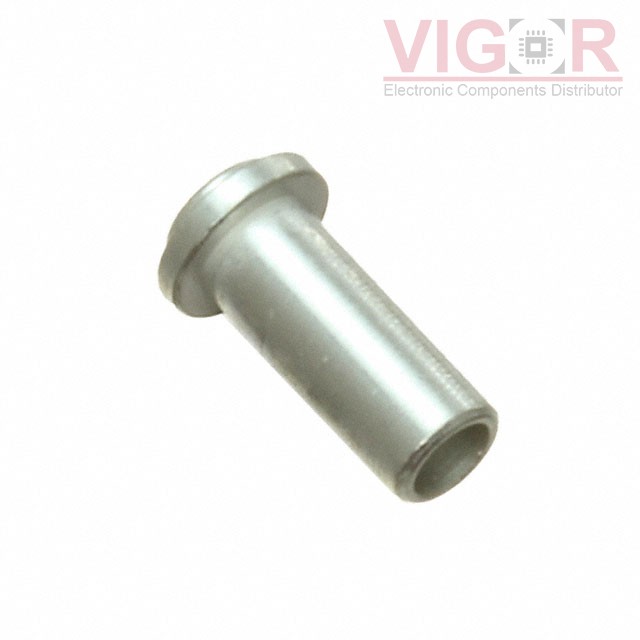

Image is for reference,
please contact us to get the real picture

Part No :: 0314-0-15-80-34-80-10-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: 0314-0-15-80-34-80-10-0 PDF

Availability: 0 pieces

Unit Price: ~~$1.20000~~

Current price of 0314-0-15-80-34-80-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0314-0-15-80-34-80-10-0 Specifications

Type	Description
Series:	0314
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.236" (6.00mm)
Accepts Pin Diameter:	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.064" (1.63mm)
Mounting Hole Diameter:	0.087" (2.21mm)
Flange Diameter:	0.126" (3.20mm)
Tail Diameter:	-
Socket Depth:	0.236" (5.99mm)
Contact Material:	Beryllium Copper
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
