0645-0-15-15-02-27-10-0

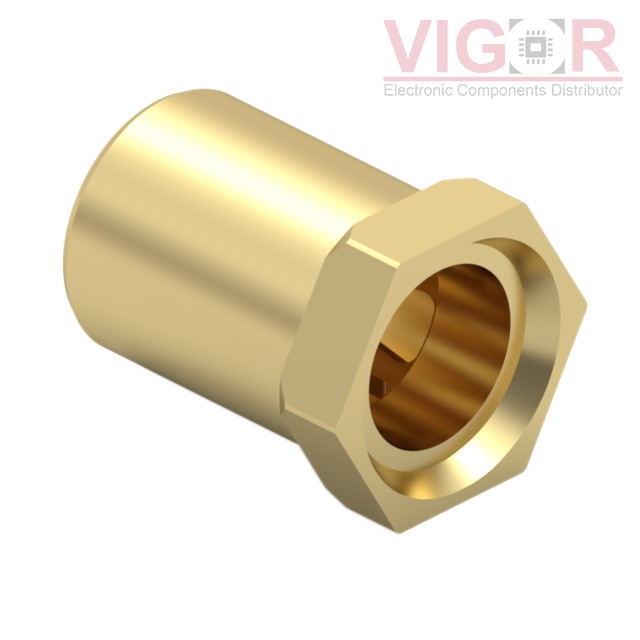

Image is for reference,
please contact us to get the real picture

Part No :: 0645-0-15-15-02-27-10-0

Manufacturer: Mill-Max

Description: ZERO PROFILE RECEPTACLE FOR LEAD

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: 0645-0-15-15-02-27-10-0 PDF

Availability: 1731 pieces

Unit Price: ~~$0.60000~~

Current price of 0645-0-15-15-02-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0645-0-15-15-02-27-10-0 Specifications

Type	Description
Series:	0645
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Press-Fit
Length - Overall:	0.120" (3.05mm)
Accepts Pin Diameter:	0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.068" (1.73mm)
Mounting Hole Diameter:	0.100" (2.54mm)
Flange Diameter:	0.100" (2.54mm)
Tail Diameter:	-
Socket Depth:	0.097" (2.46mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
