S9091-46R

S9091-46R

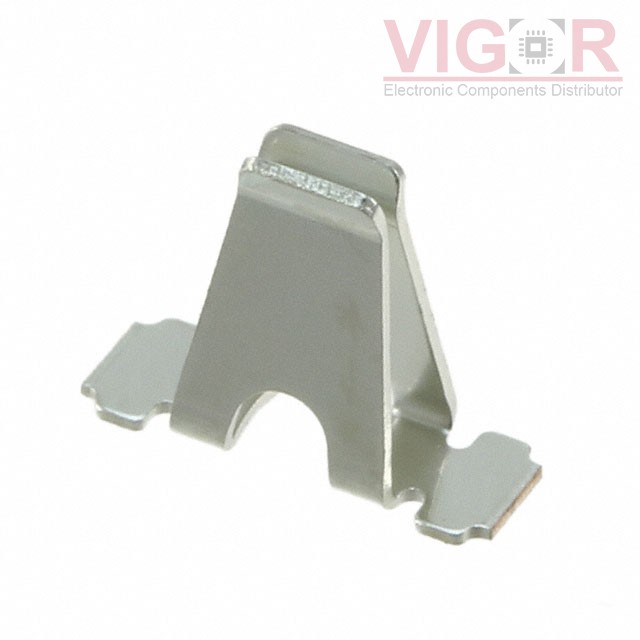

Image is for reference,
please contact us to get the real picture

Part No :

S9091-46R

Manufacturer
Harwin
Description
CONN PIN RCPT .031-.059 SMD
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
S9091-46R PDF
Availability
69428 pieces
Unit Price
$0.24000

Current price of S9091-46R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S9091-46R Specifications
Type Description
Series:EZ-Board
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Tail Type:Clip
Termination:Surface Mount - Bottom Entry
Length - Overall:0.170" (4.32mm)
Accepts Pin Diameter:0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Accepts Square Pin Size:0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Pin Hole Diameter:-
Mounting Hole Diameter:0.150" (3.81mm)
Flange Diameter:-
Tail Diameter:-
Socket Depth:0.137" (3.48mm)
Contact Material:Phosphor Bronze
Contact Finish:Tin
Contact Finish Thickness:160.0µin (4.06µm)
