0135-0-15-15-30-27-04-0

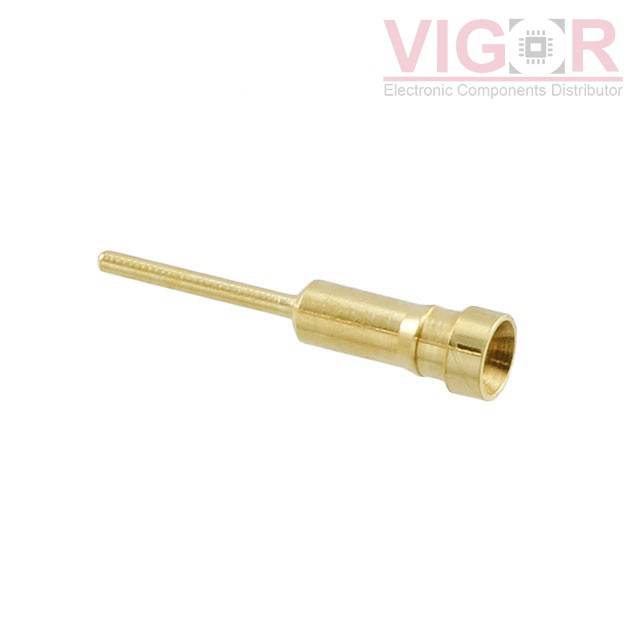

Image is for reference,
please contact us to get the real picture

Part No :: 0135-0-15-15-30-27-04-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT .015-.025 PRESSFIT

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: 0135-0-15-15-30-27-04-0 PDF

Availability: 3429 pieces

Unit Price: ~~$0.32000~~

Current price of 0135-0-15-15-30-27-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0135-0-15-15-30-27-04-0 Specifications

Type	Description
Series:	135
Package:	Bulk
Part Status:	Active
Tail Type:	Standard Tail
Termination:	Press-Fit
Length - Overall:	0.356" (9.04mm)
Accepts Pin Diameter:	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.043" (1.09mm)
Mounting Hole Diameter:	0.057" (1.45mm)
Flange Diameter:	0.072" (1.83mm)
Tail Diameter:	0.020" (0.51mm)
Socket Depth:	0.150" (3.81mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
