2297-2-17-15-16-27-02-0

2297-2-17-15-16-27-02-0

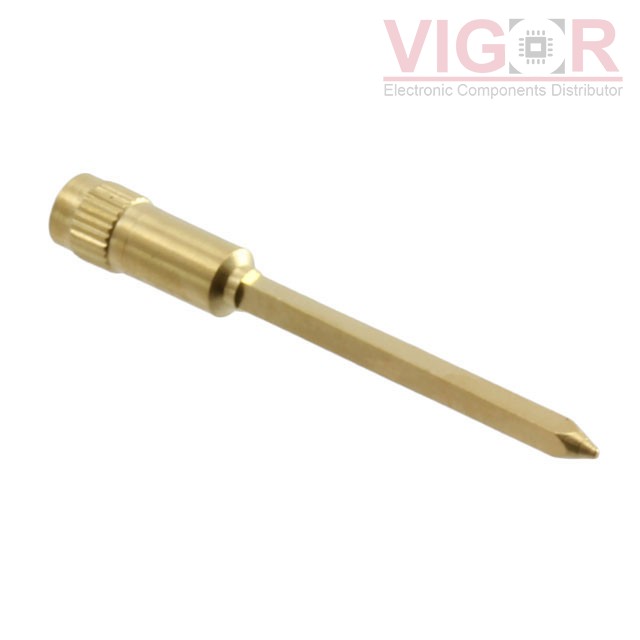

Image is for reference,
please contact us to get the real picture

Part No :

2297-2-17-15-16-27-02-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .022-.034 KNURL
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
2297-2-17-15-16-27-02-0 PDF
Availability
3463 pieces
Unit Price
$0.48000

Current price of 2297-2-17-15-16-27-02-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2297-2-17-15-16-27-02-0 Specifications
Type Description
Series:2297
Package:Bulk
Part Status:Active
Tail Type:Wire Wrap
Termination:Press-Fit, Knurled
Length - Overall:0.545" (13.84mm)
Accepts Pin Diameter:0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.051" (1.30mm)
Mounting Hole Diameter:0.067" (1.70mm)
Flange Diameter:0.070" (1.77mm)
Tail Diameter:0.025" (0.64mm) Square
Socket Depth:0.150" (3.81mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
