H3169-01

H3169-01

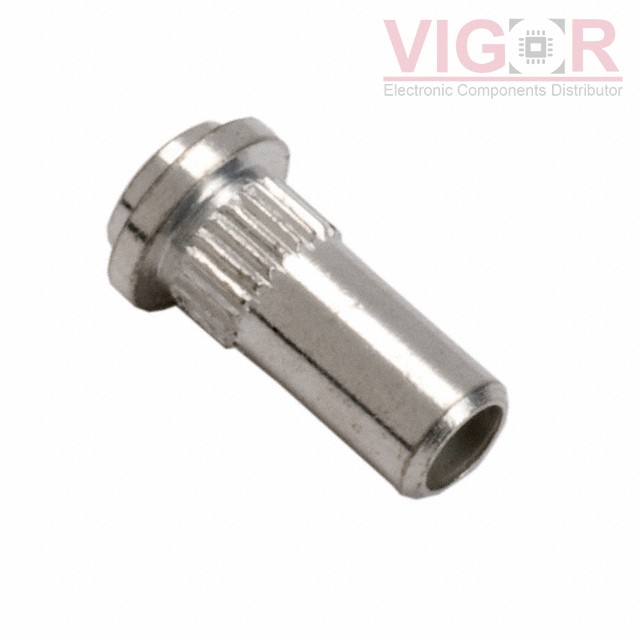

Image is for reference,
please contact us to get the real picture

Part No :

H3169-01

Manufacturer
Harwin
Description
CONN PIN RCPT .035-.041 KNURL
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
H3169-01 PDF
Availability
1768 pieces
Unit Price
$0.55000

Current price of H3169-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H3169-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Press-Fit, Knurled
Length - Overall:0.236" (6.00mm)
Accepts Pin Diameter:0.035" ~ 0.041" (0.89mm ~ 1.05mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.086" ~ 0.088" (2.18mm ~ 2.24mm)
Flange Diameter:0.125" (3.18mm)
Tail Diameter:-
Socket Depth:0.140" (3.56mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:5.90µin (0.150µm)
