H8502-01

H8502-01

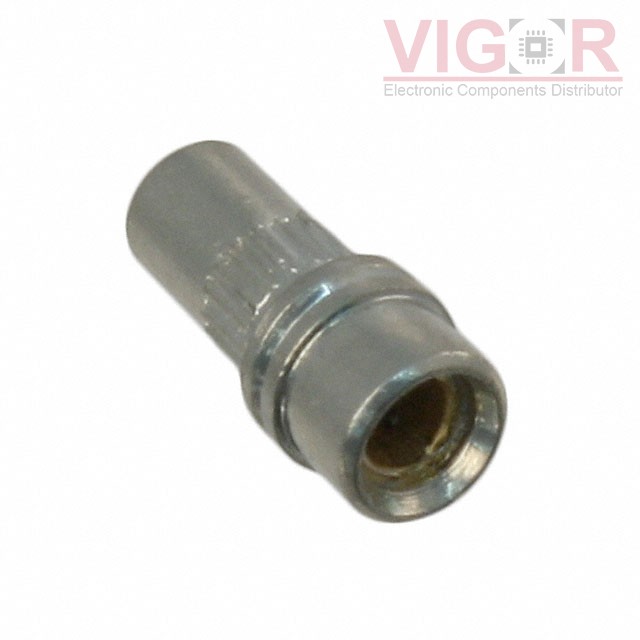

Image is for reference,
please contact us to get the real picture

Part No :

H8502-01

Manufacturer
Harwin
Description
CONN PIN RCPT .023-.033 KNURL
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
H8502-01 PDF
Availability
2138 pieces
Unit Price
$0.47000

Current price of H8502-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H8502-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Press-Fit, Knurled
Length - Overall:0.232" (5.89mm)
Accepts Pin Diameter:0.024" ~ 0.033" (0.60mm ~ 0.85mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.075" ~ 0.077" (1.91mm ~ 1.96mm)
Flange Diameter:0.105" (2.67mm)
Tail Diameter:-
Socket Depth:0.183" (4.65mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:5.90µin (0.150µm)
