0285-0-15-01-16-01-10-0

0285-0-15-01-16-01-10-0

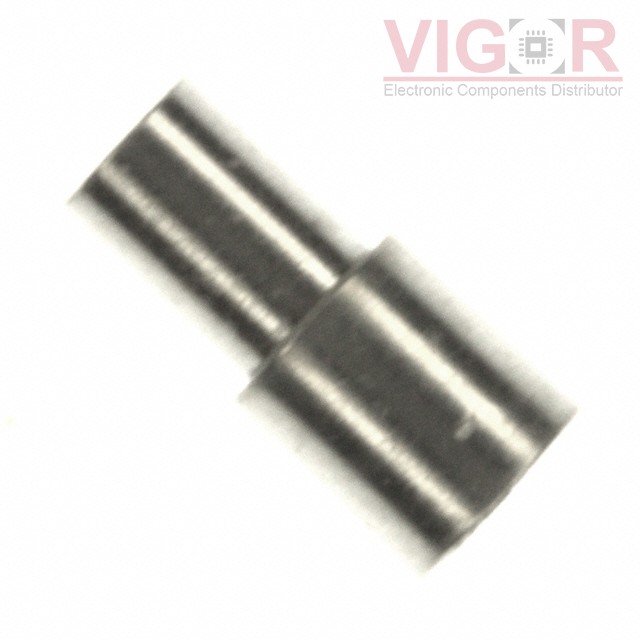

Image is for reference,
please contact us to get the real picture

Part No :

0285-0-15-01-16-01-10-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .022-.034 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
0285-0-15-01-16-01-10-0 PDF
Availability
0 pieces
Unit Price
$0.65216

Current price of 0285-0-15-01-16-01-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0285-0-15-01-16-01-10-0 Specifications
Type Description
Series:285
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Solder
Length - Overall:0.180" (4.57mm)
Accepts Pin Diameter:0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size:0.025" (0.64mm)
Pin Hole Diameter:0.051" (1.30mm)
Mounting Hole Diameter:0.065" (1.65mm)
Flange Diameter:0.080" (2.03mm)
Tail Diameter:-
Socket Depth:0.180" (4.57mm)
Contact Material:Beryllium Copper
Contact Finish:Tin-Lead
Contact Finish Thickness:200.0µin (5.08µm)
