0336-0-15-15-34-27-04-0

0336-0-15-15-34-27-04-0

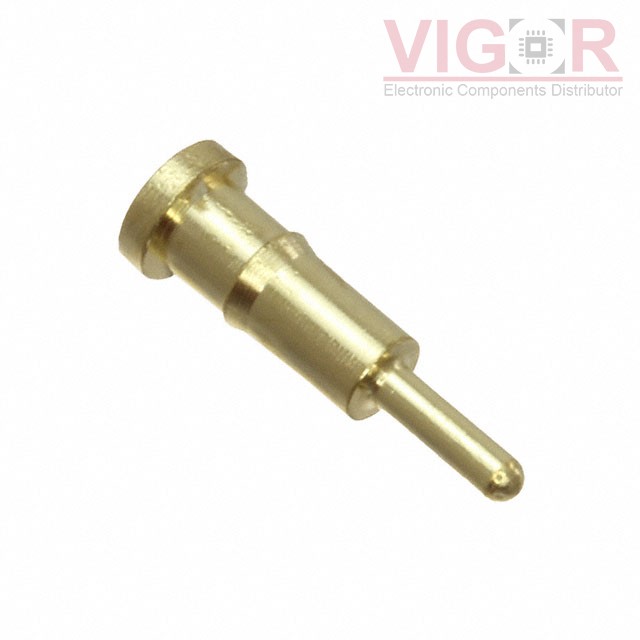

Image is for reference,
please contact us to get the real picture

Part No :

0336-0-15-15-34-27-04-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .032-.046 PRESSFIT
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
0336-0-15-15-34-27-04-0 PDF
Availability
4877 pieces
Unit Price
$1.39000

Current price of 0336-0-15-15-34-27-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0336-0-15-15-34-27-04-0 Specifications
Type Description
Series:336
Package:Bulk
Part Status:Active
Tail Type:Standard Tail
Termination:Press-Fit
Length - Overall:0.385" (9.78mm)
Accepts Pin Diameter:0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.064" (1.63mm)
Mounting Hole Diameter:0.089" (2.26mm)
Flange Diameter:0.119" (3.02mm)
Tail Diameter:0.040" (1.02mm)
Socket Depth:0.205" (5.21mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
