1705-0-15-15-30-27-04-0

1705-0-15-15-30-27-04-0

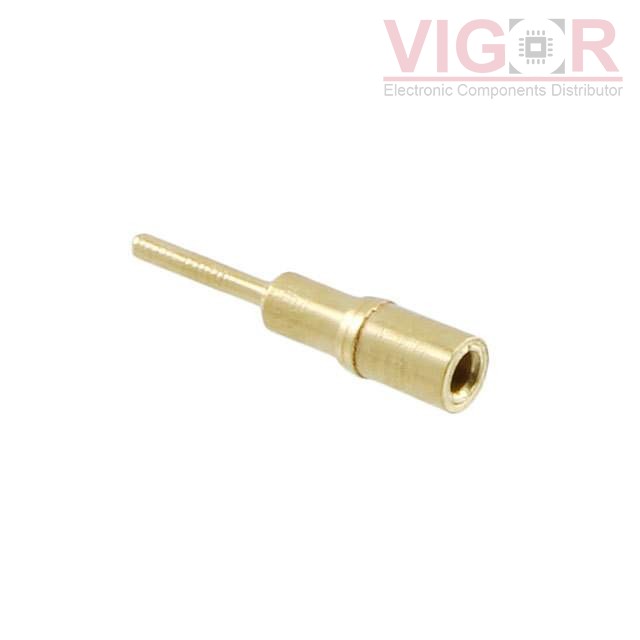

Image is for reference,
please contact us to get the real picture

Part No :

1705-0-15-15-30-27-04-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .015-.025 PRESSFIT
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
1705-0-15-15-30-27-04-0 PDF
Availability
3154 pieces
Unit Price
$0.31000

Current price of 1705-0-15-15-30-27-04-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1705-0-15-15-30-27-04-0 Specifications
Type Description
Series:1705
Package:Bulk
Part Status:Active
Tail Type:Standard Tail
Termination:Press-Fit
Length - Overall:0.290" (7.37mm)
Accepts Pin Diameter:0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size:-
Pin Hole Diameter:0.043" (1.09mm)
Mounting Hole Diameter:0.057" (1.45mm)
Flange Diameter:-
Tail Diameter:0.020" (0.51mm)
Socket Depth:0.145" (3.68mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
