0306-0-19-15-16-27-10-0

0306-0-19-15-16-27-10-0

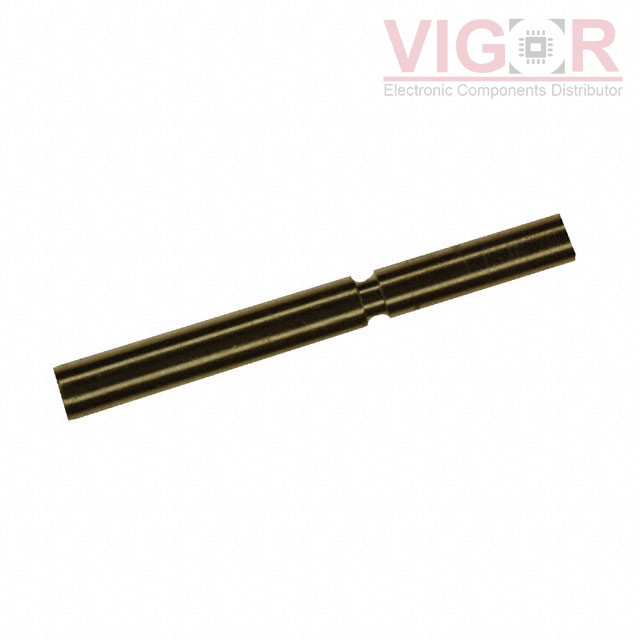

Image is for reference,
please contact us to get the real picture

Part No :

0306-0-19-15-16-27-10-0

Manufacturer
Mill-Max
Description
CONN PIN RCPT .022-.034 SOLDER
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
0306-0-19-15-16-27-10-0 PDF
Availability
4216 pieces
Unit Price
$0.89000

Current price of 0306-0-19-15-16-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0306-0-19-15-16-27-10-0 Specifications
Type Description
Series:306
Package:Bulk
Part Status:Active
Tail Type:Crimp
Termination:Solder
Length - Overall:0.665" (16.89mm)
Accepts Pin Diameter:0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size:0.025" (0.64mm)
Pin Hole Diameter:0.051" (1.30mm)
Mounting Hole Diameter:-
Flange Diameter:0.075" (1.91mm)
Tail Diameter:-
Socket Depth:0.280" (7.11mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
