5233-0-00-15-00-00-08-0

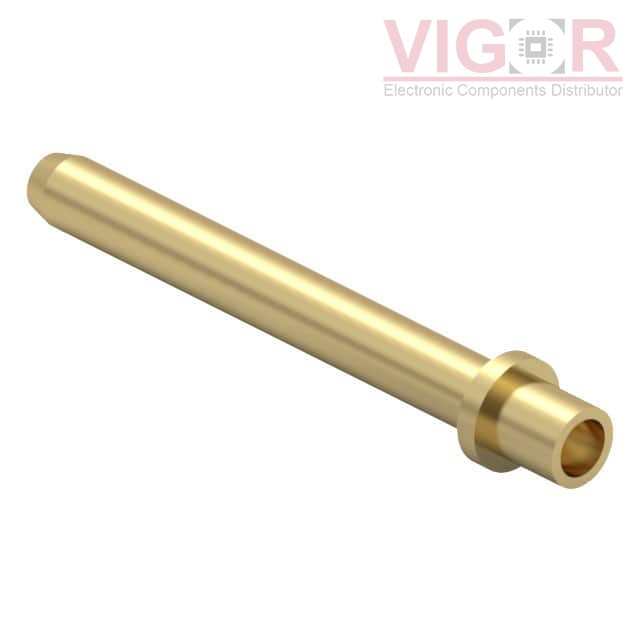

Image is for reference,
please contact us to get the real picture

Part No :: 5233-0-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: SOLDER TAIL SWAGE PIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2024

DataSheet: 5233-0-00-15-00-00-08-0 PDF

Availability: 749 pieces

Unit Price: ~~$0.66000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 5233-0-00-15-00-00-08-0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

5233-0-00-15-00-00-08-0 Specifications

Type	Description
Series:	5233
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.079" (2.01mm) Dia
Pin Size - Below Flange:	0.089" (2.26mm) Dia
Length - Above Flange:	0.650" (16.51mm)
Length - Below Flange:	0.094" (2.39mm)
Length - Overall:	0.769" (19.53mm)
Flange Diameter:	0.124" (3.15mm)
Mounting Hole Diameter:	0.093" (2.36mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.062" (1.58mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
