Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 9086-0-00-15-00-00-33-0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 9086 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | PC Pin |
Terminal Style: | Single End, Nail Head |
Pin Size - Above Flange: | 0.036" (0.91mm) Dia |
Pin Size - Below Flange: | - |
Length - Above Flange: | 0.160" (4.06mm) |
Length - Below Flange: | - |
Length - Overall: | 0.175" (4.45mm) |
Flange Diameter: | 0.060" (1.52mm) |
Mounting Hole Diameter: | 0.040" (1.02mm) |
Mounting Type: | Through Hole |
Termination: | Solder |
Insulation: | Non-Insulated |
Board Thickness: | - |
Contact Material: | Brass Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 10.0µin (0.25µm) |

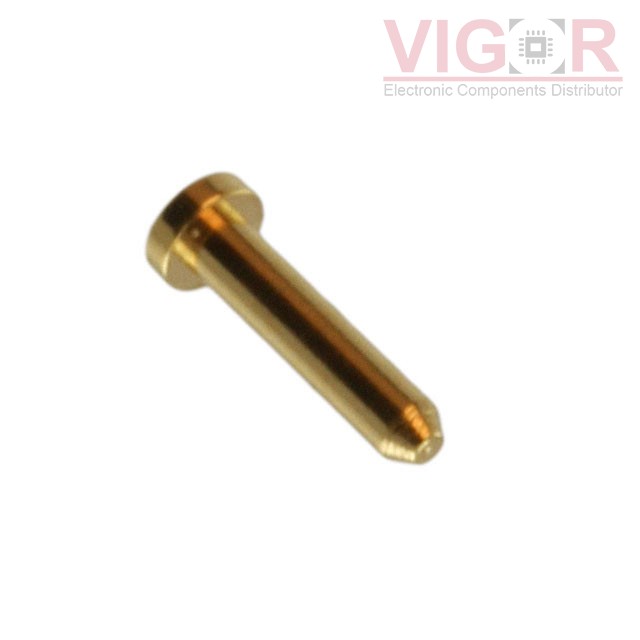

CONN PC PIN CIRC 0.036DIA GOLD
