Type | Description |
---|---|
Series: | 6620 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | PC Pin |
Terminal Style: | Single End, Slotted |
Pin Size - Above Flange: | 0.125" (3.18mm) Square |
Pin Size - Below Flange: | 0.060" (1.52mm) Dia |
Length - Above Flange: | 0.156" (3.96mm) |
Length - Below Flange: | 0.338" (8.59mm) |
Length - Overall: | 0.494" (12.55mm) |
Flange Diameter: | 0.125" (3.18mm) |
Mounting Hole Diameter: | 0.064" (1.63mm) |
Mounting Type: | Through Hole |
Termination: | Solder |
Insulation: | Non-Insulated |
Board Thickness: | - |
Contact Material: | Brass Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 10.0µin (0.25µm) |

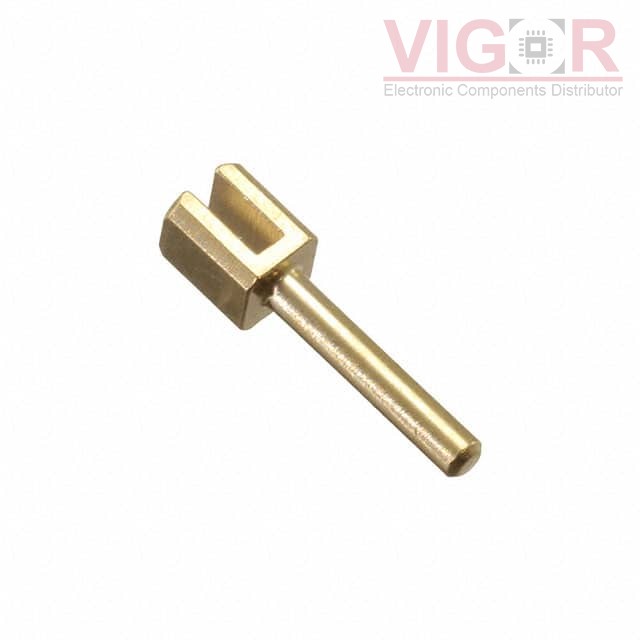

SLOTTED TERMINAL PIN
