9242-0-00-80-00-00-08-0

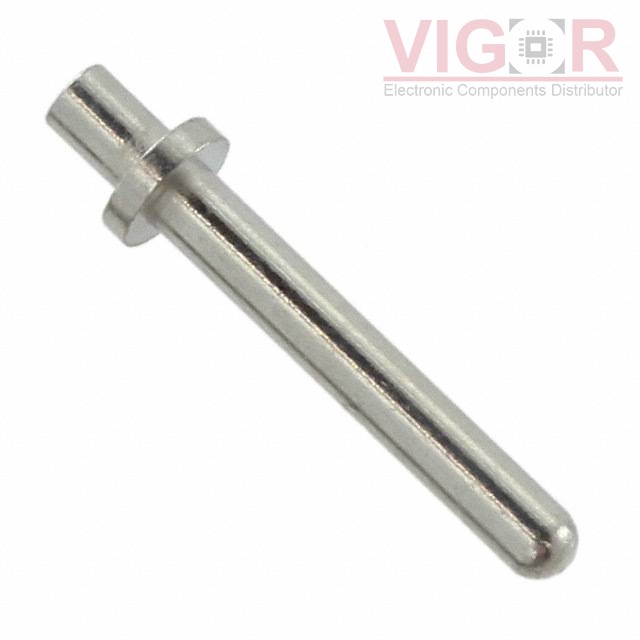

Image is for reference,
please contact us to get the real picture

Part No :: 9242-0-00-80-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC .083 DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 9242-0-00-80-00-00-08-0 PDF

Availability: 312 pieces

Unit Price: ~~$0.31000~~

Current price of 9242-0-00-80-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9242-0-00-80-00-00-08-0 Specifications

Type	Description
Series:	9242
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.083" (2.11mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.375" (9.53mm)
Length - Below Flange:	0.094" (2.39mm)
Length - Overall:	0.494" (12.55mm)
Flange Diameter:	0.125" (3.18mm)
Mounting Hole Diameter:	0.094" (2.39mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
