2516-2-01-80-00-00-07-0

2516-2-01-80-00-00-07-0

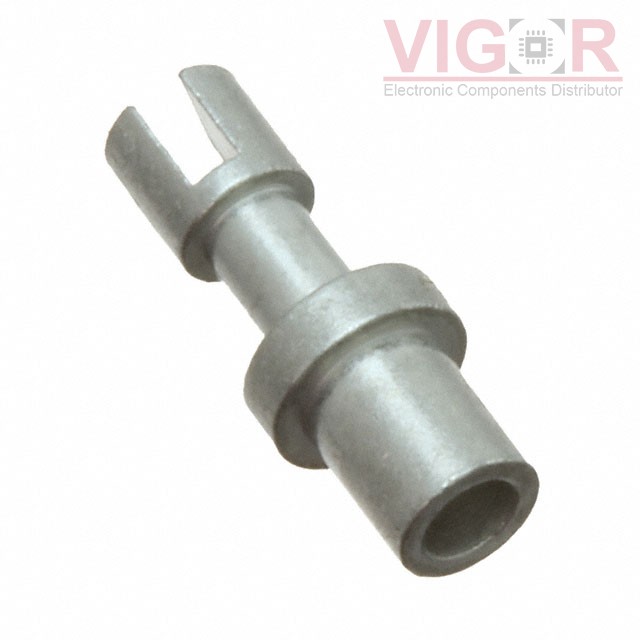

Image is for reference,
please contact us to get the real picture

Part No :

2516-2-01-80-00-00-07-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
2516-2-01-80-00-00-07-0 PDF
Availability
440 pieces
Unit Price
$0.84000

Current price of 2516-2-01-80-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2516-2-01-80-00-00-07-0 Specifications
Type Description
Series:2516
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End, Slotted
Pin Size - Above Flange:0.063" (1.60mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.184" (4.67mm)
Length - Below Flange:0.105" (2.67mm)
Length - Overall:0.324" (8.23mm)
Flange Diameter:0.125" (3.18mm)
Mounting Hole Diameter:0.094" (2.39mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
