3157-0-00-15-00-00-03-0

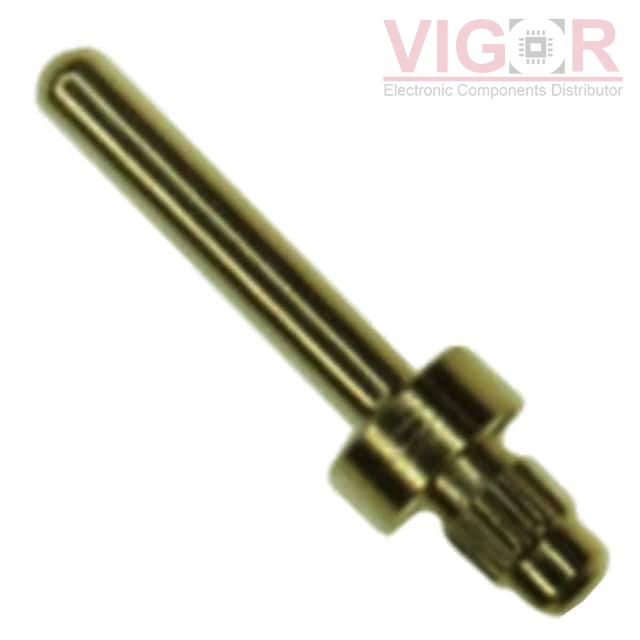

Image is for reference,
please contact us to get the real picture

Part No :: 3157-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.018DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: 3157-0-00-15-00-00-03-0 PDF

Availability: 58519 pieces

Unit Price: ~~$0.16000~~

Current price of 3157-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3157-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	3157
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.018" (0.46mm) Dia
Pin Size - Below Flange:	0.023" (0.58mm) Dia
Length - Above Flange:	0.125" (3.18mm)
Length - Below Flange:	0.045" (1.14mm)
Length - Overall:	0.190" (4.83mm)
Flange Diameter:	0.045" (1.14mm)
Mounting Hole Diameter:	0.026" (0.66mm)
Mounting Type:	Through Hole
Termination:	Press-Fit, Knurled
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
