9137-0-00-15-00-00-38-0

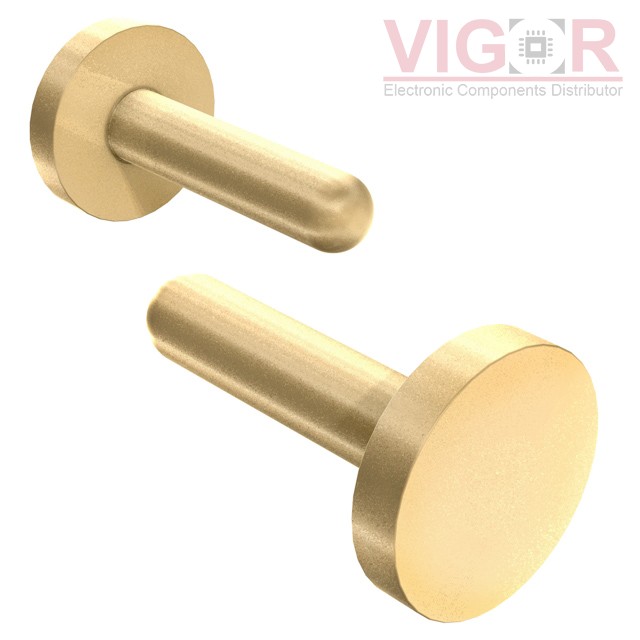

Image is for reference,
please contact us to get the real picture

Part No :: 9137-0-00-15-00-00-38-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.018DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: 9137-0-00-15-00-00-38-0 PDF

Availability: 1045 pieces

Unit Price: ~~$0.59000~~

Current price of 9137-0-00-15-00-00-38-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9137-0-00-15-00-00-38-0 Specifications

Type	Description
Series:	9137
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End, Nail Head
Pin Size - Above Flange:	0.018" (0.46mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.160" (4.06mm)
Length - Below Flange:	-
Length - Overall:	0.180" (4.57mm)
Flange Diameter:	0.050" (1.27mm)
Mounting Hole Diameter:	0.022" (0.56mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
