6430-0-00-15-00-00-03-0

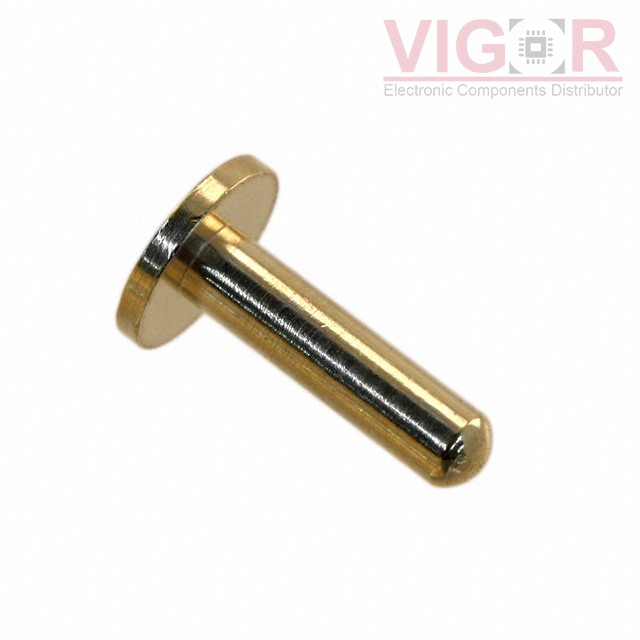

Image is for reference,
please contact us to get the real picture

Part No :: 6430-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 6430-0-00-15-00-00-03-0 PDF

Availability: 9362 pieces

Unit Price: ~~$0.13000~~

Current price of 6430-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6430-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	6430
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.053" (1.35mm) Dia
Pin Size - Below Flange:	0.019" (0.48mm) Dia
Length - Above Flange:	0.131" (3.33mm)
Length - Below Flange:	0.035" (0.89mm)
Length - Overall:	0.145" (3.68mm)
Flange Diameter:	0.028" (0.71mm)
Mounting Hole Diameter:	0.025" (0.64mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
