302-10-001-00-900800

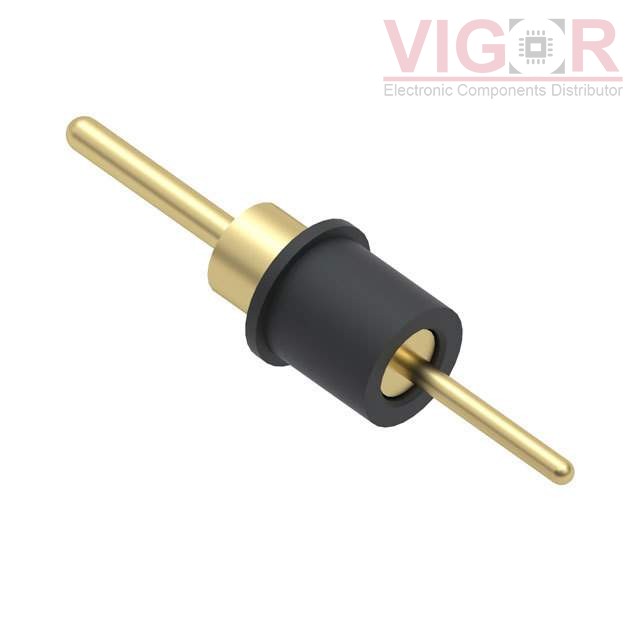

Image is for reference,
please contact us to get the real picture

Part No :: 302-10-001-00-900800

Manufacturer: Mill-Max

Description: INSULATED TERMINAL PIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 302-10-001-00-900800 PDF

Availability: 0 pieces

Unit Price: ~~$0.32175~~

Current price of 302-10-001-00-900800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

302-10-001-00-900800 Specifications

Type	Description
Series:	302
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.025" (0.64mm) Dia
Pin Size - Below Flange:	0.018" (0.46mm) Dia
Length - Above Flange:	0.166" (4.22mm)
Length - Below Flange:	0.153" (3.89mm)
Length - Overall:	0.477" (12.12mm)
Flange Diameter:	0.110" (2.79mm)
Mounting Hole Diameter:	-
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
