3128-1-00-15-00-00-08-0

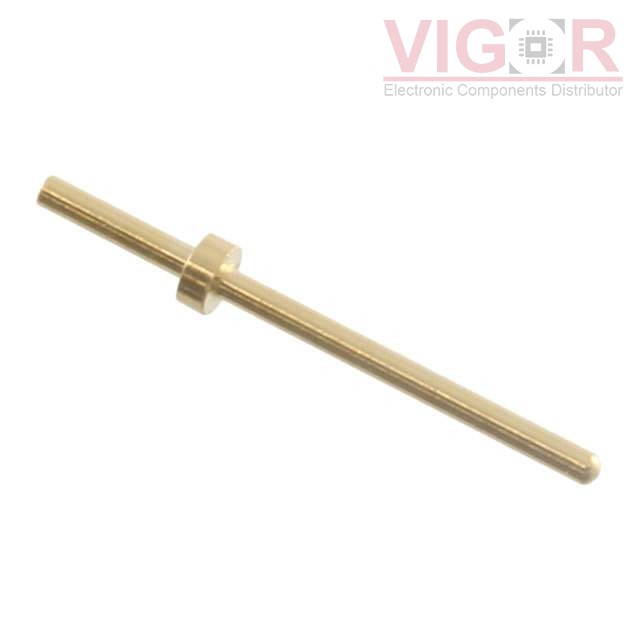

Image is for reference,
please contact us to get the real picture

Part No :: 3128-1-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 3128-1-00-15-00-00-08-0 PDF

Availability: 63350 pieces

Unit Price: ~~$0.19000~~

Current price of 3128-1-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3128-1-00-15-00-00-08-0 Specifications

Type	Description
Series:	3128
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	0.020" (0.51mm) Dia
Length - Above Flange:	0.250" (6.35mm)
Length - Below Flange:	0.100" (2.54mm)
Length - Overall:	0.370" (9.40mm)
Flange Diameter:	0.046" (1.17mm)
Mounting Hole Diameter:	0.024" (0.61mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
