11158

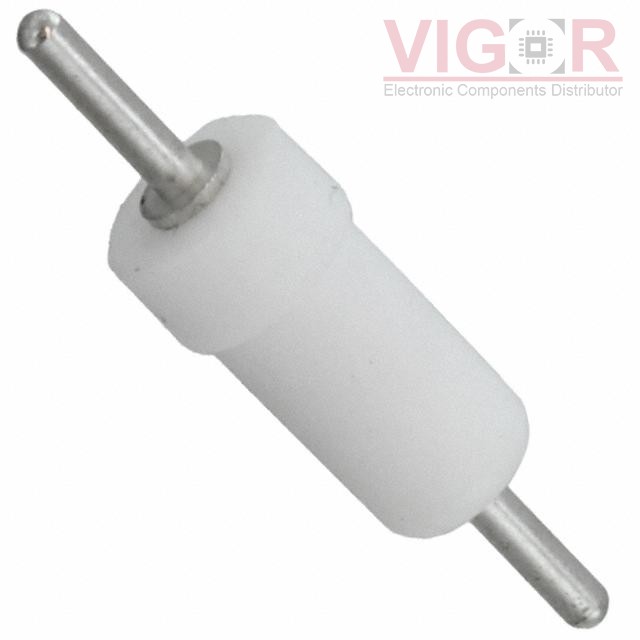

Image is for reference,
please contact us to get the real picture

Part No :: 11158

Manufacturer: Keystone Electronics Corp.

Description: CONN PC PIN CIRC 0.040DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 11158 PDF

Availability: 19333900 pieces

Unit Price: ~~$1.66000~~

Current price of 11158 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

11158 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.040" (1.02mm) Dia
Length - Above Flange:	0.210" (5.33mm)
Length - Below Flange:	0.416" (10.57mm)
Length - Overall:	0.719" (18.26mm)
Flange Diameter:	0.172" (4.37mm)
Mounting Hole Diameter:	0.136" (3.45mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
