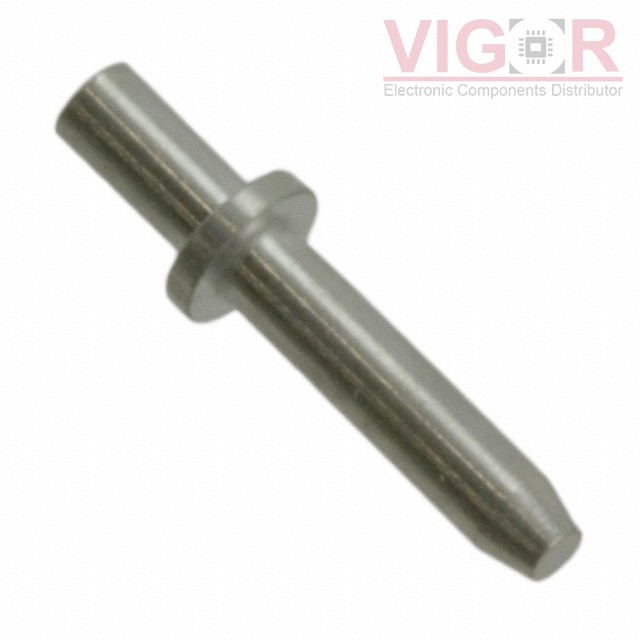

H2175-01

Image is for reference,
please contact us to get the real picture

Part No :: H2175-01

Manufacturer: Harwin

Description: CONN PC PIN CIRC 0.041DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: H2175-01 PDF

Availability: 5 pieces

Unit Price: ~~$0.27000~~

Current price of H2175-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2175-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.041" (1.04mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.179" (4.55mm)
Length - Below Flange:	0.082" (2.08mm)
Length - Overall:	0.275" (6.98mm)
Flange Diameter:	0.070" (1.77mm)
Mounting Hole Diameter:	0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
