4689-0-00-15-00-00-33-0

4689-0-00-15-00-00-33-0

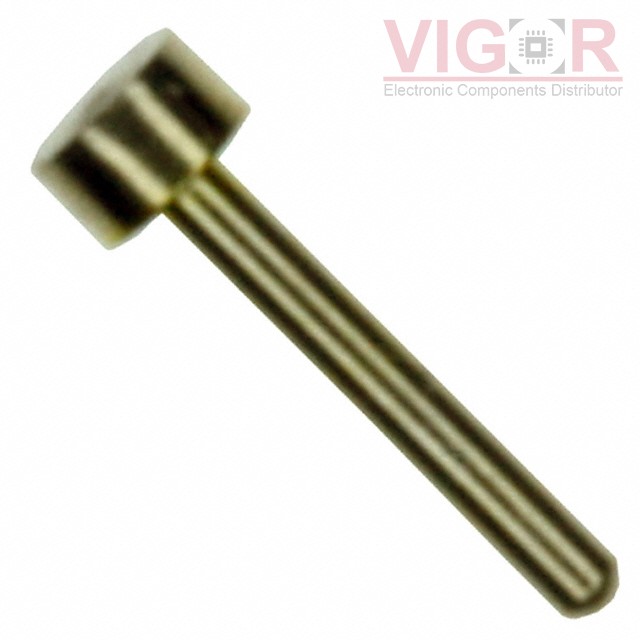

Image is for reference,
please contact us to get the real picture

Part No :

4689-0-00-15-00-00-33-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.015DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
4689-0-00-15-00-00-33-0 PDF
Availability
18425 pieces
Unit Price
$0.75000

Current price of 4689-0-00-15-00-00-33-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4689-0-00-15-00-00-33-0 Specifications
Type Description
Series:4689
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End, Nail Head
Pin Size - Above Flange:0.015" (0.38mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.105" (2.67mm)
Length - Below Flange:-
Length - Overall:0.125" (3.18mm)
Flange Diameter:0.035" (0.89mm)
Mounting Hole Diameter:0.019" (0.48mm)
Mounting Type:Through Hole
Termination:Solder
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
