3129-1-00-15-00-00-08-0

3129-1-00-15-00-00-08-0

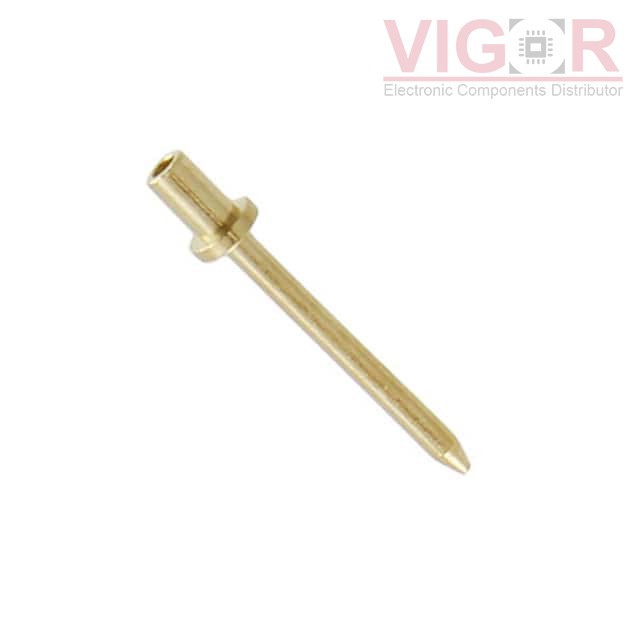

Image is for reference,
please contact us to get the real picture

Part No :

3129-1-00-15-00-00-08-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.020DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
3129-1-00-15-00-00-08-0 PDF
Availability
4115 pieces
Unit Price
$0.17000

Current price of 3129-1-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3129-1-00-15-00-00-08-0 Specifications
Type Description
Series:3129
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.020" (0.51mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.215" (5.46mm)
Length - Below Flange:0.051" (1.30mm)
Length - Overall:0.276" (7.01mm)
Flange Diameter:0.050" (1.27mm)
Mounting Hole Diameter:0.035" (0.89mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.031" (0.79mm)
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
