3155-0-00-15-00-00-03-0

3155-0-00-15-00-00-03-0

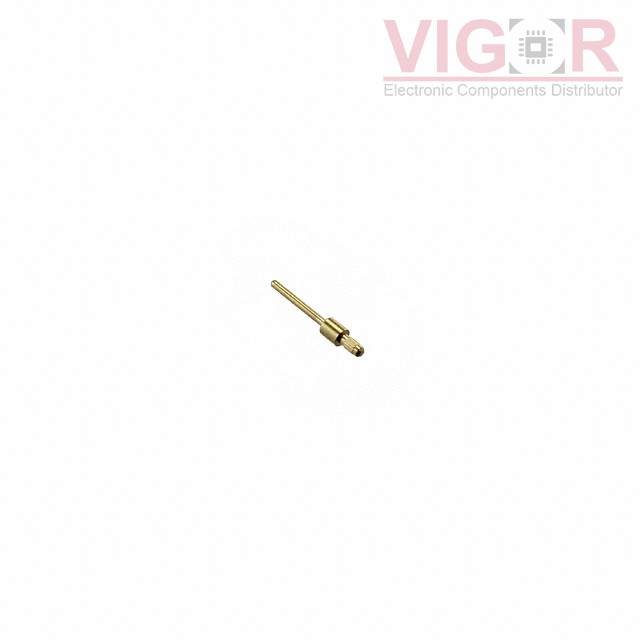

Image is for reference,
please contact us to get the real picture

Part No :

3155-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.018DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
3155-0-00-15-00-00-03-0 PDF
Availability
162 pieces
Unit Price
$0.84000

Current price of 3155-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3155-0-00-15-00-00-03-0 Specifications
Type Description
Series:3155
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.018" (0.46mm) Dia
Pin Size - Below Flange:0.025" (0.64mm) Dia
Length - Above Flange:0.180" (4.57mm)
Length - Below Flange:0.060" (1.52mm)
Length - Overall:0.290" (7.37mm)
Flange Diameter:0.045" (1.14mm)
Mounting Hole Diameter:0.026" (0.66mm)
Mounting Type:Through Hole
Termination:Press-Fit, Knurled
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
