H2181-01

H2181-01

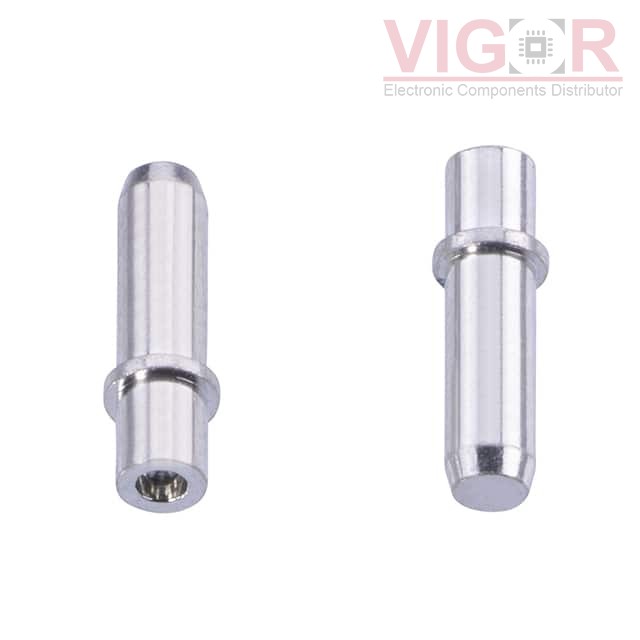

Image is for reference,
please contact us to get the real picture

Part No :

H2181-01

Manufacturer
Harwin
Description
CONN PC PIN 1.75MM DIA TIN 5MM
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
H2181-01 PDF
Availability
2900 pieces
Unit Price
$0.47000

Current price of H2181-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2181-01 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.070" (1.78mm) Dia
Pin Size - Below Flange:0.070" (1.78mm) Dia
Length - Above Flange:0.197" (5.00mm)
Length - Below Flange:0.077" (1.95mm)
Length - Overall:0.289" (7.35mm)
Flange Diameter:0.089" (2.25mm)
Mounting Hole Diameter:0.071" ~ 0.075" (1.80mm ~ 1.90mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
