1938-0-00-15-00-00-03-0

1938-0-00-15-00-00-03-0

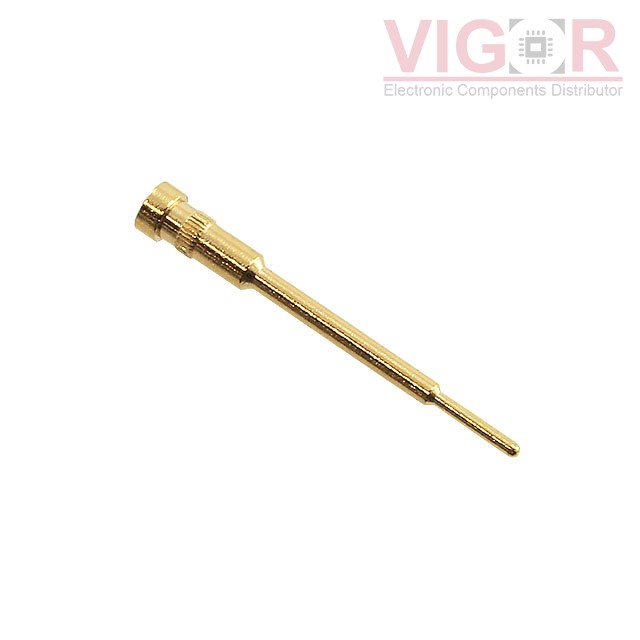

Image is for reference,
please contact us to get the real picture

Part No :

1938-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.020DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
1938-0-00-15-00-00-03-0 PDF
Availability
5472 pieces
Unit Price
$0.28000

Current price of 1938-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1938-0-00-15-00-00-03-0 Specifications
Type Description
Series:1938
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.020" (0.51mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.537" (13.64mm)
Length - Below Flange:-
Length - Overall:0.567" (14.40mm)
Flange Diameter:0.072" (1.83mm)
Mounting Hole Diameter:0.057" (1.45mm)
Mounting Type:Through Hole
Termination:Press-Fit, Knurled
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
