7504-0-00-15-00-00-03-0

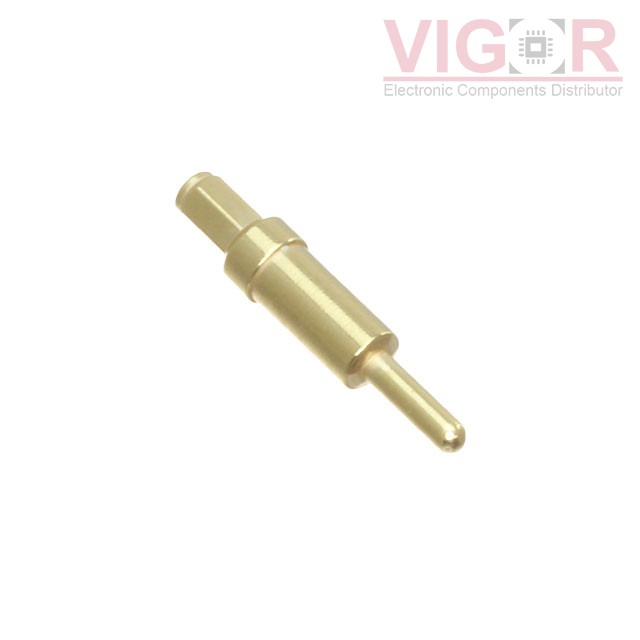

Image is for reference,
please contact us to get the real picture

Part No :: 7504-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: PRESS-FIT PCB PIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 7504-0-00-15-00-00-03-0 PDF

Availability: 2071 pieces

Unit Price: ~~$0.36000~~

Current price of 7504-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7504-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	7504
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.058" (1.47mm) Dia
Length - Above Flange:	0.310" (7.87mm)
Length - Below Flange:	0.100" (2.54mm)
Length - Overall:	0.460" (11.68mm)
Flange Diameter:	0.093" (2.36mm)
Mounting Hole Diameter:	0.068" (1.73mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
