3620-2-32-15-00-00-08-0

3620-2-32-15-00-00-08-0

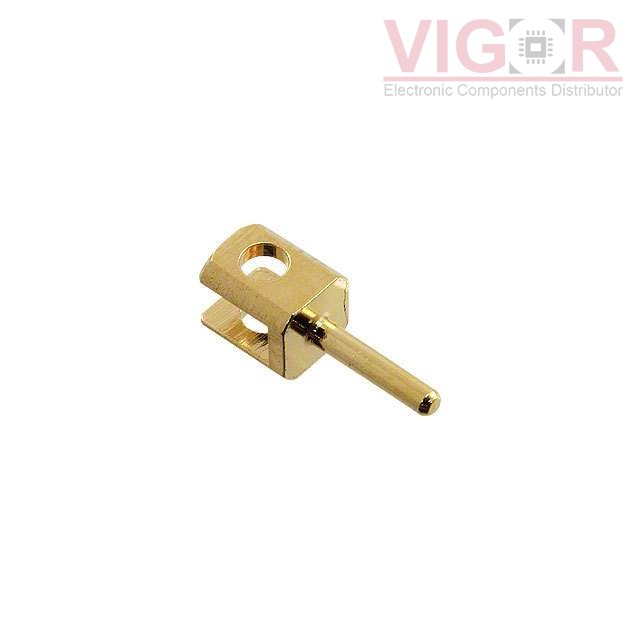

Image is for reference,
please contact us to get the real picture

Part No :

3620-2-32-15-00-00-08-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.040DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
3620-2-32-15-00-00-08-0 PDF
Availability
8462 pieces
Unit Price
$0.64000

Current price of 3620-2-32-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3620-2-32-15-00-00-08-0 Specifications
Type Description
Series:3620
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.040" (1.02mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.200" (5.08mm)
Length - Below Flange:-
Length - Overall:0.356" (9.04mm)
Flange Diameter:-
Mounting Hole Diameter:-
Mounting Type:Board Edge
Termination:Rivet
Insulation:Non-Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
