2104-3-01-01-00-00-07-0

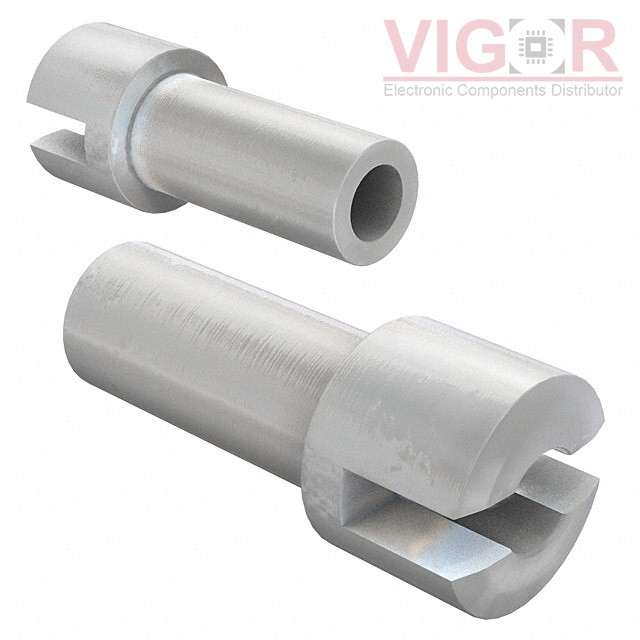

Image is for reference,
please contact us to get the real picture

Part No :: 2104-3-01-01-00-00-07-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC .047DIA TINLEAD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 2104-3-01-01-00-00-07-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.53328~~

Current price of 2104-3-01-01-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2104-3-01-01-00-00-07-0 Specifications

Type	Description
Series:	2104
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End, Slotted
Pin Size - Above Flange:	0.047" (1.19mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.070" (1.78mm)
Length - Below Flange:	0.117" (2.97mm)
Length - Overall:	0.187" (4.75mm)
Flange Diameter:	0.047" (1.19mm)
Mounting Hole Diameter:	0.036" (0.91mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin-Lead
Contact Finish Thickness:	200.0µin (5.08µm)
