8969-0-05-15-00-00-03-0

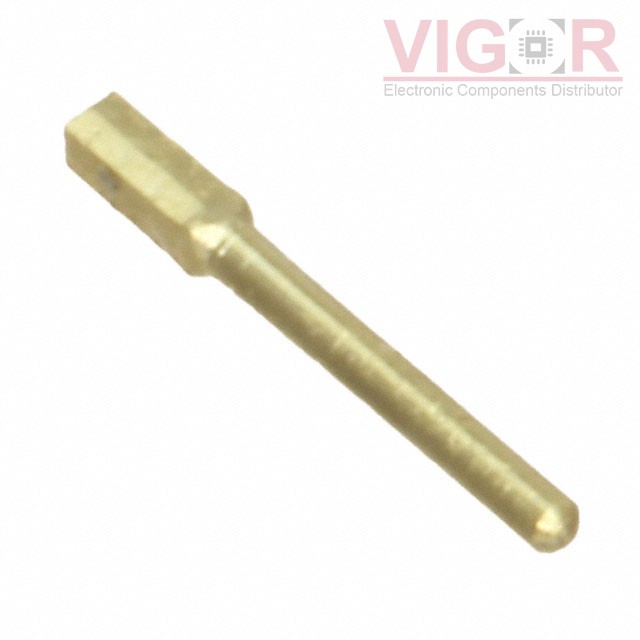

Image is for reference,
please contact us to get the real picture

Part No :: 8969-0-05-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 8969-0-05-15-00-00-03-0 PDF

Availability: 1354 pieces

Unit Price: ~~$0.87000~~

Current price of 8969-0-05-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8969-0-05-15-00-00-03-0 Specifications

Type	Description
Series:	8969
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Wire
Pin Size - Above Flange:	0.018" (0.46mm) Dia
Pin Size - Below Flange:	0.028" (0.71mm) Dia
Length - Above Flange:	0.140" (3.56mm)
Length - Below Flange:	-
Length - Overall:	0.200" (5.08mm)
Flange Diameter:	0.021" (0.53mm)
Mounting Hole Diameter:	0.023" (0.58mm)
Mounting Type:	Through Hole
Termination:	Press-Fit, Square
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
