3169-0-61-15-00-00-03-0

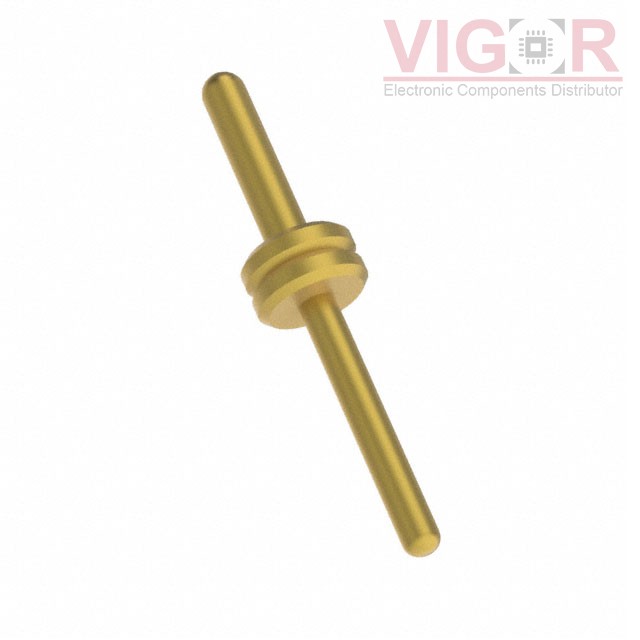

Image is for reference,
please contact us to get the real picture

Part No :: 3169-0-61-15-00-00-03-0

Manufacturer: Mill-Max

Description: DOUBLE TAIL HEADER PIN ON

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: 3169-0-61-15-00-00-03-0 PDF

Availability: 641 pieces

Unit Price: ~~$0.80000~~

Current price of 3169-0-61-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3169-0-61-15-00-00-03-0 Specifications

Type	Description
Series:	3169
Package:	Tape & Reel (TR)Tape & Reel (TR)
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.022" (0.56mm) Dia
Pin Size - Below Flange:	0.018" (0.46mm) Dia
Length - Above Flange:	0.100" (2.54mm)
Length - Below Flange:	0.132" (3.35mm)
Length - Overall:	0.262" (6.65mm)
Flange Diameter:	0.056" (1.42mm)
Mounting Hole Diameter:	-
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
