3609-2-07-21-00-00-08-0

3609-2-07-21-00-00-08-0

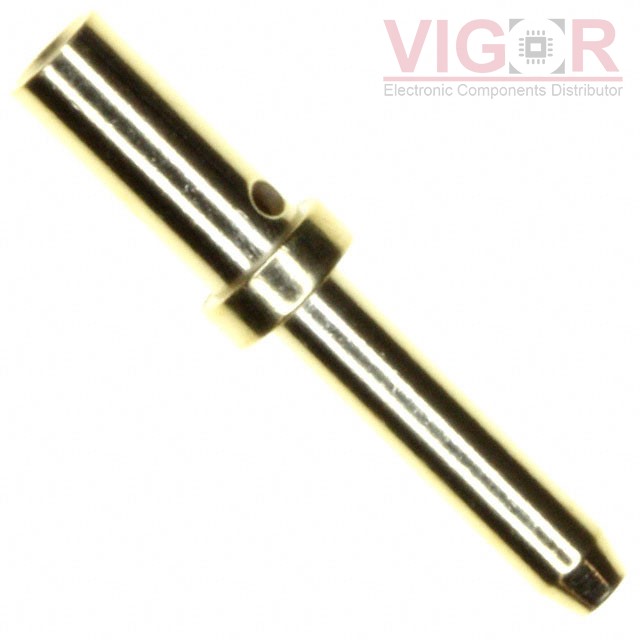

Image is for reference,
please contact us to get the real picture

Part No :

3609-2-07-21-00-00-08-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.080DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
3609-2-07-21-00-00-08-0 PDF
Availability
1758 pieces
Unit Price
$1.21000

Current price of 3609-2-07-21-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3609-2-07-21-00-00-08-0 Specifications
Type Description
Series:3609
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Wire
Pin Size - Above Flange:0.080" (2.03mm) Dia
Pin Size - Below Flange:0.103" (2.62mm) Dia
Length - Above Flange:0.375" (9.53mm)
Length - Below Flange:0.250" (6.35mm)
Length - Overall:0.671" (17.04mm)
Flange Diameter:0.142" (3.61mm)
Mounting Hole Diameter:-
Mounting Type:Free Hanging (In-Line)
Termination:Crimp
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
