H2475-05

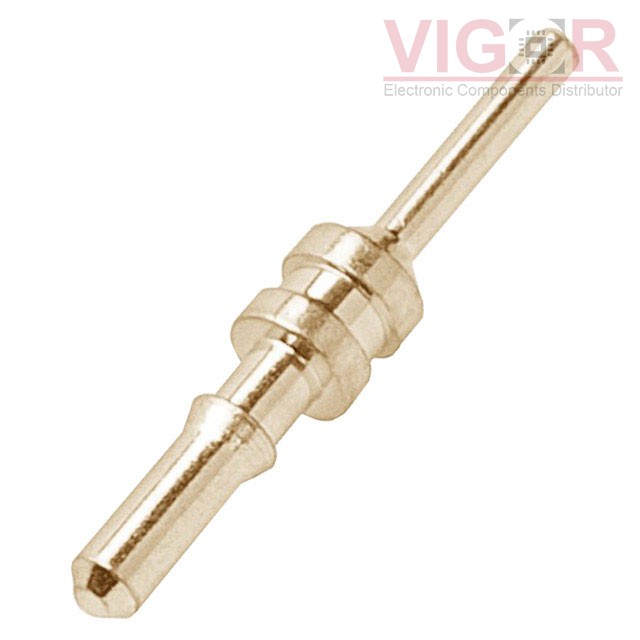

Image is for reference,
please contact us to get the real picture

Part No :: H2475-05

Manufacturer: Harwin

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 12 - Jul 16 2025

DataSheet: H2475-05 PDF

Availability: 0 pieces

Unit Price: ~~$0.09310~~

Current price of H2475-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2475-05 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	0.030" (0.76mm) Dia
Length - Above Flange:	-
Length - Below Flange:	0.118" (3.00mm)
Length - Overall:	0.287" (7.29mm)
Flange Diameter:	0.050" (1.27mm)
Mounting Hole Diameter:	0.030" ~ 0.033" (0.76mm ~ 0.84mm)
Mounting Type:	Through Hole
Termination:	Swage, Barbed
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Gold
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
