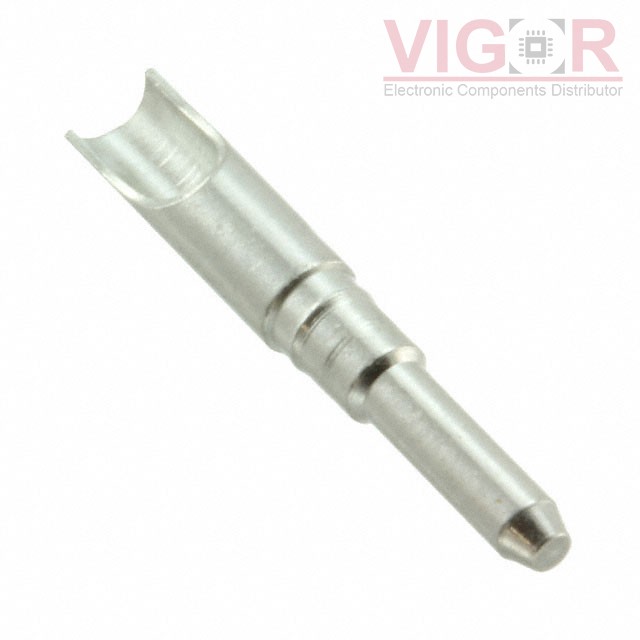

1160-0-01-80-00-00-03-0

Image is for reference,
please contact us to get the real picture

Part No :: 1160-0-01-80-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC .060DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: 1160-0-01-80-00-00-03-0 PDF

Availability: 2271 pieces

Unit Price: ~~$0.24000~~

Current price of 1160-0-01-80-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1160-0-01-80-00-00-03-0 Specifications

Type	Description
Series:	1160
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Wire
Pin Size - Above Flange:	0.060" (1.52mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.315" (8.00mm)
Length - Below Flange:	-
Length - Overall:	0.590" (14.99mm)
Flange Diameter:	0.090" (2.29mm)
Mounting Hole Diameter:	0.080" (2.03mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)

Please confirm the specifications of the products when ordering.
