3158-0-00-15-00-00-03-0

3158-0-00-15-00-00-03-0

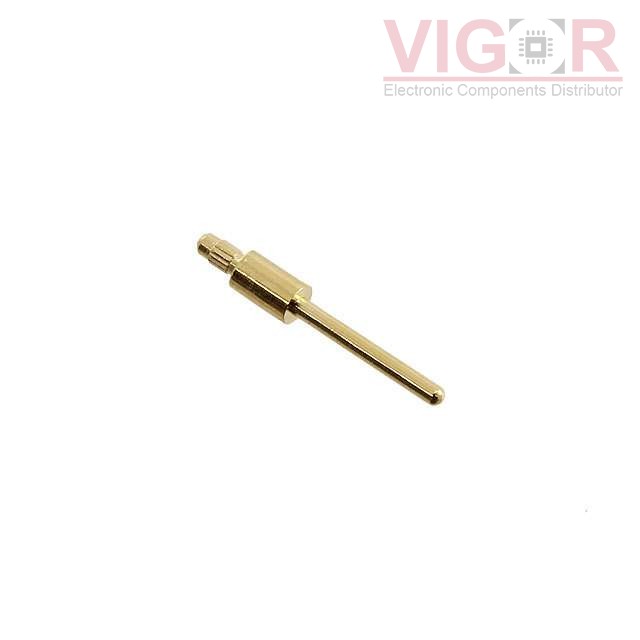

Image is for reference,
please contact us to get the real picture

Part No :

3158-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.018DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
3158-0-00-15-00-00-03-0 PDF
Availability
9900 pieces
Unit Price
$0.18000

Current price of 3158-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3158-0-00-15-00-00-03-0 Specifications
Type Description
Series:3158
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.018" (0.46mm) Dia
Pin Size - Below Flange:0.022" (0.56mm) Dia
Length - Above Flange:0.160" (4.06mm)
Length - Below Flange:0.050" (1.27mm)
Length - Overall:0.270" (6.86mm)
Flange Diameter:0.040" (1.02mm)
Mounting Hole Diameter:0.023" (0.58mm)
Mounting Type:Through Hole
Termination:Press-Fit, Knurled
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
