5145-0-00-15-00-00-03-0

5145-0-00-15-00-00-03-0

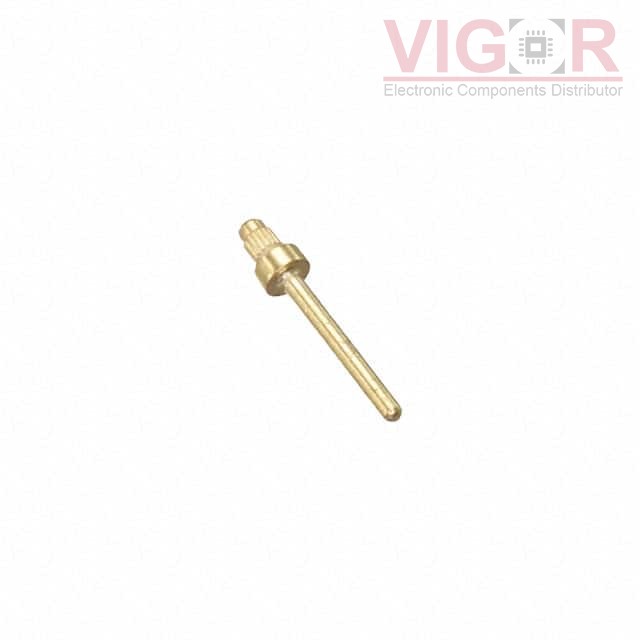

Image is for reference,
please contact us to get the real picture

Part No :

5145-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
PRESS-FIT PCB PIN FOR A NON-PLAT
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
5145-0-00-15-00-00-03-0 PDF
Availability
1514 pieces
Unit Price
$0.45000

Current price of 5145-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5145-0-00-15-00-00-03-0 Specifications
Type Description
Series:5145
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.018" (0.46mm) Dia
Pin Size - Below Flange:0.023" (0.58mm) Dia
Length - Above Flange:0.165" (4.18mm)
Length - Below Flange:0.045" (1.14mm)
Length - Overall:0.230" (5.84mm)
Flange Diameter:0.045" (1.14mm)
Mounting Hole Diameter:0.026" (0.66mm)
Mounting Type:Through Hole
Termination:Press-Fit, Knurled
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
