0542-0-00-21-00-00-03-0

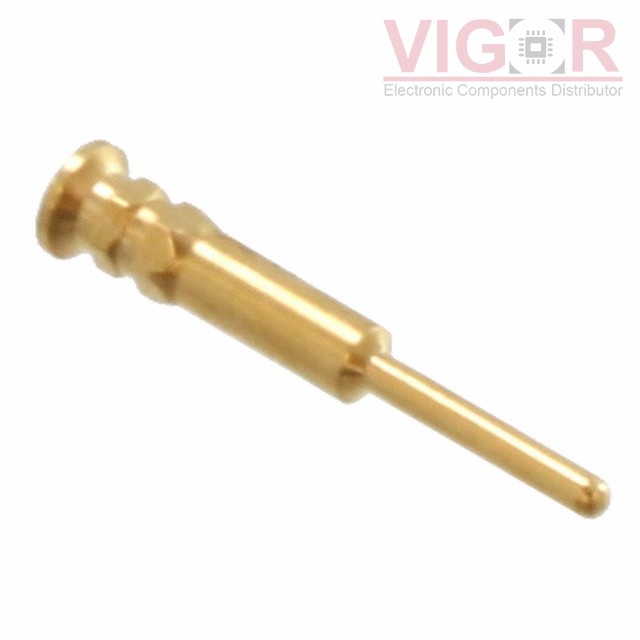

Image is for reference,
please contact us to get the real picture

Part No :: 0542-0-00-21-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: 0542-0-00-21-00-00-03-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.48080~~

Current price of 0542-0-00-21-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0542-0-00-21-00-00-03-0 Specifications

Type	Description
Series:	0542
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.279" (7.09mm)
Length - Below Flange:	-
Length - Overall:	0.295" (7.49mm)
Flange Diameter:	0.055" (1.40mm)
Mounting Hole Diameter:	0.039" (0.99mm)
Mounting Type:	Through Hole
Termination:	Press-Fit, Hex
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
