0008500477

0008500477

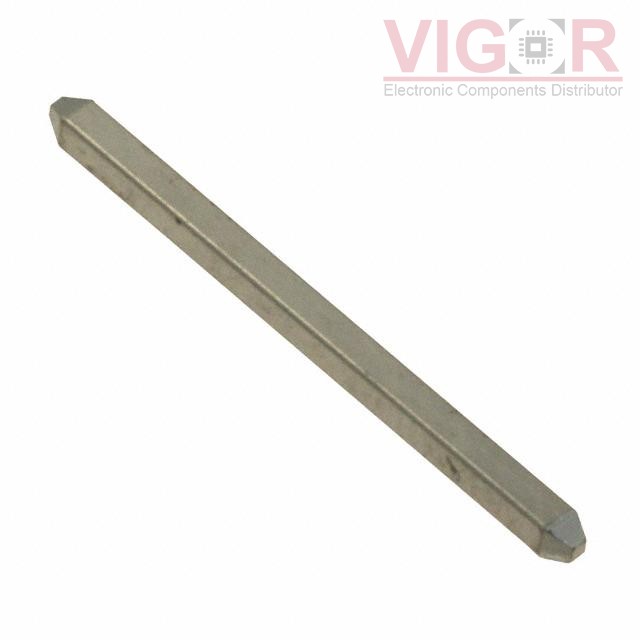

Image is for reference,
please contact us to get the real picture

Part No :

0008500477

Manufacturer
Woodhead - Molex
Description
CONN PC PIN SQUARE 0.045 TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
0008500477 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 0008500477 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0008500477 Specifications
Type Description
Series:KK 2161
Package:Bulk
Part Status:Obsolete
Terminal Type:Single Post
Terminal Style:Smooth
Pin Size - Above Flange:0.045" (1.14mm) Square
Pin Size - Below Flange:0.045" (1.14mm) Square
Length - Above Flange:-
Length - Below Flange:-
Length - Overall:0.980" (24.89mm)
Flange Diameter:-
Mounting Hole Diameter:0.050" ~ 0.053" (1.27mm ~ 1.35mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
