H3150-01

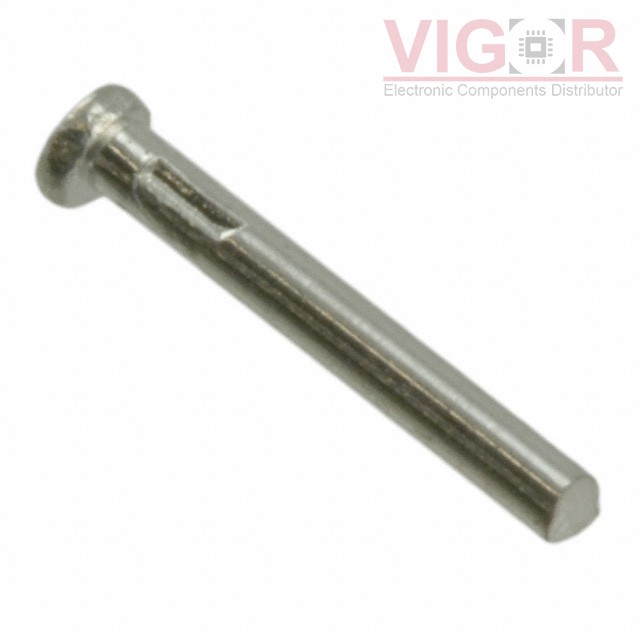

Image is for reference,
please contact us to get the real picture

Part No :: H3150-01

Manufacturer: Harwin

Description: CONN PC PIN CIRC 0.038DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: H3150-01 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of H3150-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H3150-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.038" (0.97mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.276" (7.00mm)
Length - Below Flange:	-
Length - Overall:	0.295" (7.49mm)
Flange Diameter:	0.063" (1.60mm)
Mounting Hole Diameter:	0.039" ~ 0.041" (0.99mm ~ 1.04mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" ~ 0.094" (1.60mm ~ 2.39mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
